PRODUCT PARAMETERS
Description
An Introduction to Outdoor LED Display
The outdoor module(Outdoor LED Display) is suitable for mainstream control systems on the market and is flexible, lightweight, easy to install and maintain. It is widely used in industry and commerce, posts and telecommunications, sports, advertising, factories and mines, transportation, education systems, stations, docks, airports, shopping malls, hospitals, hotels, banks, securities markets, construction markets, auction houses, industrial enterprise management and other public place. It has media display, information release, traffic induction, creative display and other purposes.
Features of Outdoor LED Display
- High performance
- LED high-density full-color screen dedicated driver chip and input buffer chip, the colors are bright, and the video picture is more delicate and smooth;
- Good effect
- The driver chip that drives red, green, and blue LEDs through OE signals can form 4.398 billion color changes;
- High definition display
- High resolution brings high-definition and delicate display effects, without flickering or graininess;
- Ultra large viewing angle
- The horizontal viewing angle can reach 160 ° or more;
- Low power consumption
- Using constant current mode to drive LED, the light is uniform and the power consumption is low;
- Good flatness
- The self-developed and produced multi reinforced structural bottom shell is not easily deformed;
- Strong reliability
- It uses high-protection lamp beads, is filled with glue on the front, and is sprayed with three-proof paint on the back. It is waterproof and moisture-proof, stable and reliable.
Product Parameters of Outdoor LED Display
| Module No | P2.5 | P3 | P4 | P5 | P6 | P8 | P10 |
| Pixel Structure | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD 3535 |
| Pixel Pitch | 2.5mm | 3.076mm | 4mm | 5mm | 6.667mm | 8mm | 10mm |
| Module Resolution | 128*64 | 104*52 | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |
| Module Size(mm) | 320*160 | 320*160 | 320*160 | 320 × 160 | 320*160 | 320*160 | 320*160 |
| Module Weight | 0.46±0.01kg | 0.46±0.01kg | 0.46±0.01kg | 0.48±0.01kg | 0.53±0.01kg | 0.48±0.01kg | 0.49±0.01kg |
| Unit Area | 0.0512㎡ | 0.0512㎡ | 0.0512㎡ | 0.0512㎡ | 0.0512㎡ | 0.0512㎡ | 0.0512㎡ |
| Pixel Density | 160000dots/㎡ | 105625dots/㎡ | 62500dots/㎡ | 40000dots/㎡ | 22500dots/㎡ | 15625dots/㎡ | 10000dots/㎡ |
| White Balance Brightness | ≥4000nits | ≥4000nits | ≥5000nits | ≥4500nits | ≥5000nits | ≥4200nits | ≥5500nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° | 140° | 140° | 140° |
| Brightness Uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
| Contrast Ratio | 5000 ∶ 1 | 5000 ∶ 1 | 5000 ∶ 1 | 5000 ∶ 1 | 5000 ∶ 1 | 5000 ∶ 1 | 5000 ∶ 1 |
| Max Power Consumption | ≤713W/㎡ | ≤713W/㎡ | ≤850W/㎡ | ≤810W/㎡ | ≤811W/㎡ | ≤810W/㎡ | ≤879W/㎡ |
| Average power consumption | ≤286W/㎡ | ≤286W/㎡ | ≤340W/㎡ | ≤324W/㎡ | ≤325W/㎡ | ≤325W/㎡ | ≤352W/㎡ |
| Power Supply Requirements | 4.2-5.0V | 4.2-5.0V | 4.2-5.0V | 4.2-5.0V | 4.2-5.0V | 4.2-5.0V | 4.2-5.0V |
| Drive Mode | Constant current drive 16 scan | Constant current drive 13 scan | Constant current drive 10 scan | Constant current drive 8 scan | Constant current drive 6 scan | Constant current drive 5 scan | Constant current drive 2 scan |
| Frame Frequency | 50&60Hz | 50&60Hz | 50&60Hz | 50&60Hz | 50&60Hz | 50&60Hz | 50&60Hz |
| Refresh Rate | ≥1920/3840Hz | ≥1920/3840Hz | ≥1920/3840Hz | ≥1920/3840Hz | ≥1920/3840Hz | ≥1920/3840Hz | ≥1920/3840Hz |
| Theoretical Lifespan (hours) | 100000 | 100000 | 100000 | 100000 | 100000 | 100000 | 100000 |
| Working TemperatureRange | -10℃ ~ 40℃ | -10℃ ~ 40℃ | -10℃ ~ 40 ℃ | -10℃ ~ 40℃ | -10℃ ~ 40℃ | -10℃ ~ 40℃ | -10℃ ~ 40℃ |
| Storage TemperatureRange | -20℃ ~ 60℃ | -20℃ ~ 60℃ | -20℃ ~ 60℃ | -20℃ ~ 60℃ | -20℃ ~ 60℃ | -20℃ ~ 60℃ | -20℃ ~ 60℃ |
| Working Humidity Range | 10 — 80%RH No condensation | 10 — 80%RH No condensation | 10 — 80%RH No condensation | 10 — 80%RH No condensation | 10 — 80%RH No condensation | 10 — 80%RH No condensation | 10 — 80%RH No condensation |
| Storage Humidity Range | 10 — 85%RH No condensation | 10 — 85%RH No condensation | 10 — 85%RH No condensation | 10 — 85%RH No condensation | 10 — 85%RH No condensation | 10 — 85%RH No condensation | 10 — 85%RH No condensation |
Applications of Outdoor LED Display

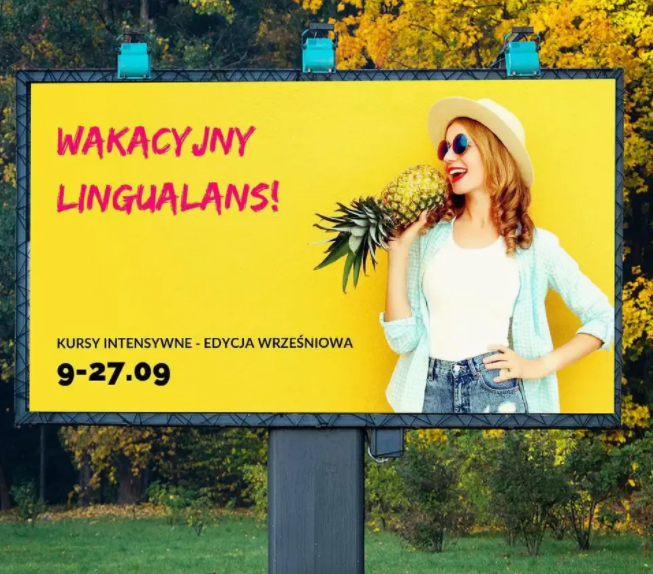

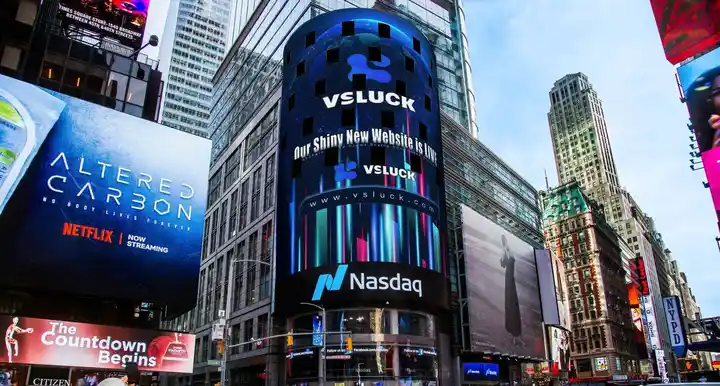

- Commercial display and brand promotion
- Building glass curtain walls
- Exhibitions and activity stages
- Transportation field

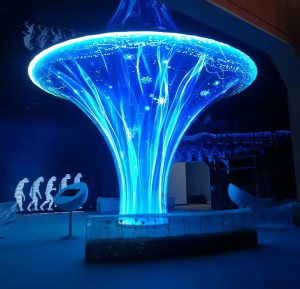

- Creative decoration and art installation
- Interior decoration and conference display
- Car and smart advertising
Package of Outdoor LED Display
Carton Box, Wooden Crate, Flight Case, etc.
Company Profile
- Shenzhen Zhongxian Beixin Technology Co., Ltd. is a high-tech company, which is located in Shenzhen, Guangdong province, specializing in the research and development, production, marketing, and professional services of LED application products, and providing various indoor & outdoor LED display, rental LED display, LED module, LED panel, intelligent all-in-one LED display, transparent LED display and integrated solutions for control room, commercial advertising, architectural industries, stadiums, church and many other applications. Our products can meet different point distance, visual distance, brightness and environmental requirements.
- Besides, the products also have passed CCC, FCC, CE, ROHS etc. certificate for global market, and other international standard certification, product and enterprise qualification certification, product test report and patent certificates are complete.
- We stick to the principle of quality and service first, continuously improve and innovate our products to meet the diverse needs of customers and dedicate to creating a more colorful and brighter world.
- If you need a high-quality LED display, please feel free to contact us. You can click on the product to contact us. (https://www.leyardleddisplay.com/contact-us/)
- Exhibition Hall of Made-in-China.com: https://zxbx371.en.made-in-china.com/
FAQs of Outdoor LED Display
Q1: What is the lifespan of Outdoor LED Display?
A1: The lifespan can vary, but high-quality LED Display can last over 100,000 hours.
Q2: What is the viewing angle like and is it obstructed?
A2: This display has a large viewing angle, with a horizontal viewing angle of more than 140° and no obstructions.
Q3: What to do if the sending card not detected?
A3: Check whether the device is normally powered; check whether the serial port cable or computer USB interface is damaged; check whether the serial port is occupied by other software; check whether the serial port driver is installed on the computer.
Q4: LED whole screen does not display images how to do?
A4: Check whether the display power is on; whether the display has HDMI signal input, connect the LCD monitor to check whether it is due to signal transmission link failure; whether the brightness setting of the display control software is normal.
Q5: How long is the warranty on this display?
A5: Warranty periods vary, but many manufacturers offer warranties ranging from 1 to 5 years.
