Indoor LED Display: High Quality and Tech Now

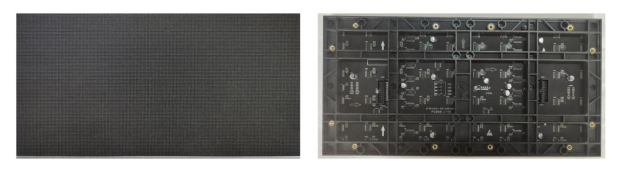

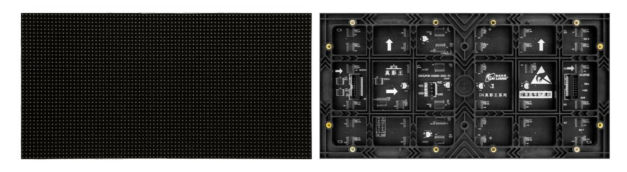

An Introduction to Indoor LED Display

The indoor module (Indoor LED Display) is suitable for mainstream control systems on the market, with the characteristics of flexibility, lightweight, easy installation and maintenance. Widely used in building facades, shopping malls, wedding decorations, and holiday activities.

Features of Indoor LED Display

• Select high-quality surface sticker lights
  • with even and consistent ink color on the screen body;
• Dedicated driver chip
  • eliminates ghosting, improves low gray color deviation, and has excellent anti-interference ability;
• High definition display
  • High resolution brings high-definition and delicate display effects, without flickering or graininess;
• Ultra large viewing angle
  • The horizontal viewing angle can reach 160 ° or more;
• High grayscale
  • grayscale adjustable from 13 to 14 bits;
• Good flatness
  • The self-developed and produced multi reinforced structural bottom shell is not easily deformed;
• Easy installation and maintenance
  • The bottom shell of the unit board adopts a quick detachable magnetic suction back cover, which is easy to install.

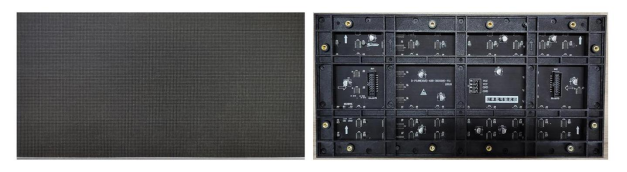

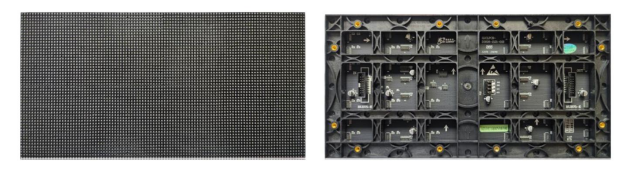

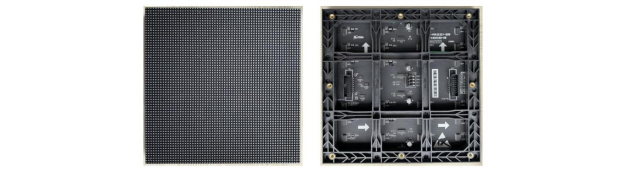

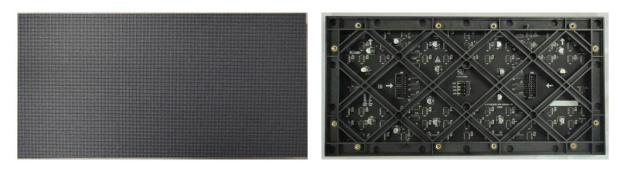

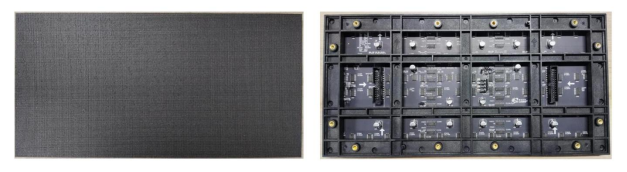

Product Parameters of Indoor LED Display

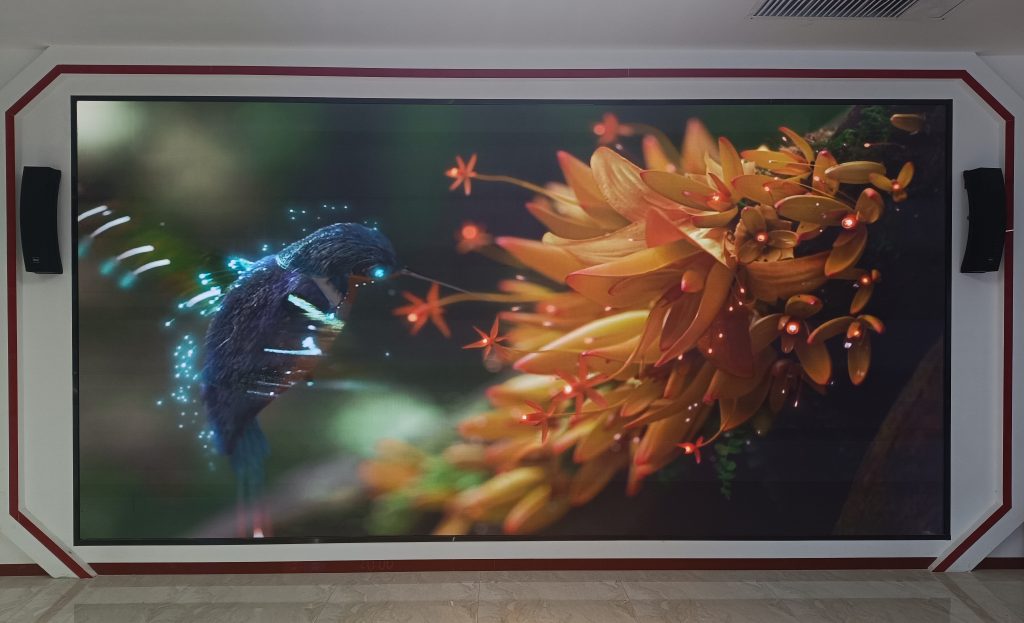

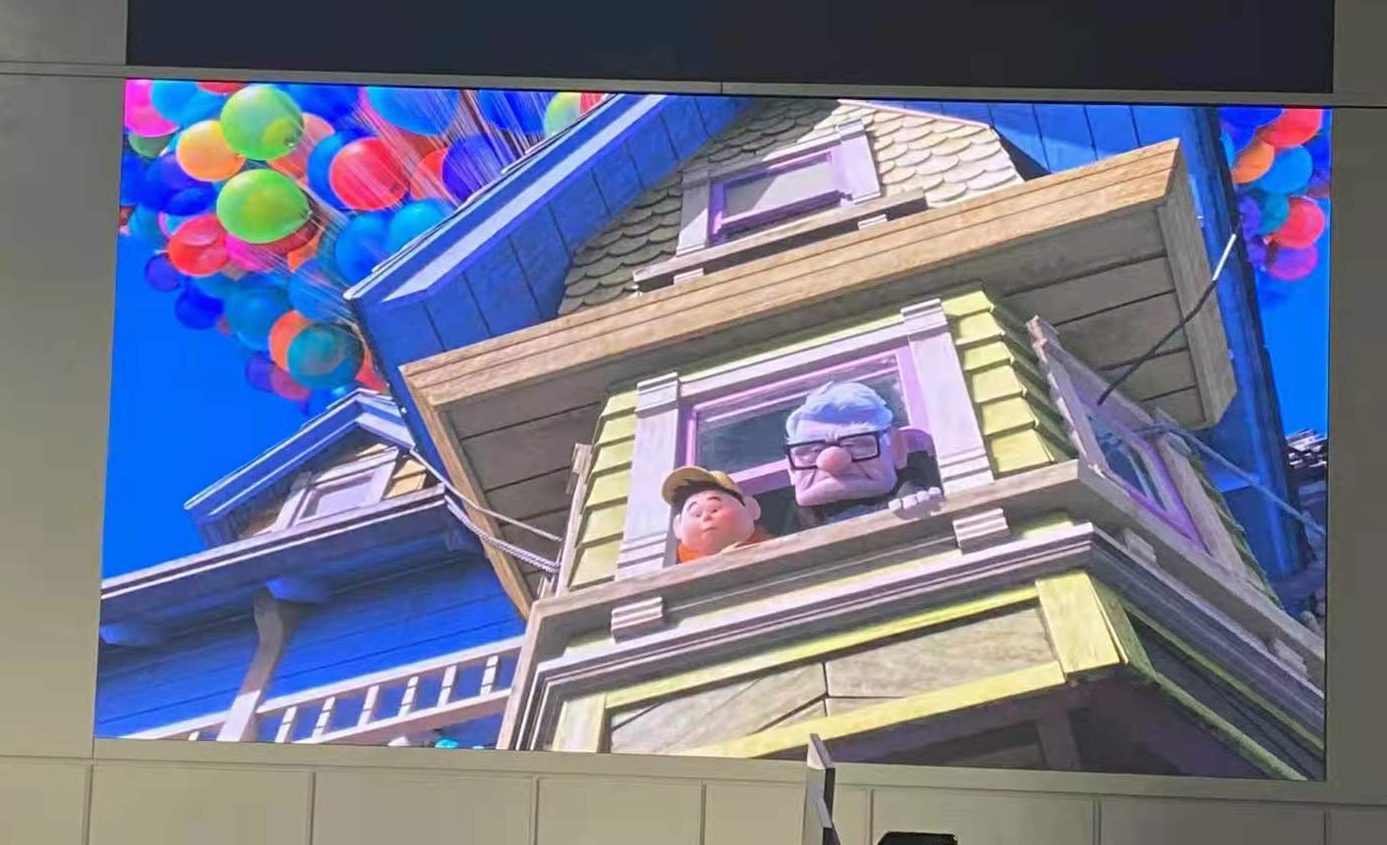

Applications of Indoor LED Display

• Retail Displays
• Art Installations
• Indoor Signage
• Architectural Lighting
• Event Decoration
• Interactive Displays
• Digital Menu Boards
• Exhibitions and Trade Shows
• Corporate Environments
• Theatrical and Performance Arts

Package of Indoor LED Display

Precautions of Indoor LED Display

• Since LEDs and CMOS integrated circuits are static-sensitive devices, you need to be careful to prevent static electricity when using LED modules. Take the following precautions:
  • Personnel who come into contact with the product must wear grounded electrostatic bracelets or electrostatic gloves;
  • The switching power supply casing, box body, screen, etc. are strictly grounded, and the grounding resistance is required to be ≤10 ohms, and inspections are carried out every six months;
  • Various tools during the assembly process must be strictly grounded.
• In order to prevent improper use of power supply from reducing the service life of the module or burning the module, the following precautions should be strictly observed when connecting the LED module power supply:
  • Firstly,use a dedicated switching power supply for the LED display. The module requires DC 4.5V input and is not allowed to be directly connected to 220V, otherwise the entire screen module will be burned;
  • Additionally,when installing the LED module, please pay attention to the correct wiring of the power port. The positive and negative poles must correspond; if the positive and negative poles are connected reversely, the power must be cut off in time to avoid damaging the components;
  • Furthermore,the operating voltage of the module should not exceed its maximum allowable operating voltage of 5.5V.
• When cleaning the surface of the LED module, do not use unknown chemical liquids to avoid damaging or corroding the LED.For example:
  • When cleaning the LED lamp, use a clean soft rag dipped in alcohol to wipe it gently, and wait until it is dry before using it;
  • When cleaning the kit, use a clean soft rag dipped in water and wipe it gently. No water marks will remain after wiping, and it must be dried before use.
• It is not recommended to use magnetic installation for modules in areas of -10°C and below. The deformation of the module will affect the flatness of the display. Screw locks must be used for installation.

Company Profile

• Shenzhen Zhongxian Beixin Technology Co., Ltd. is a high-tech company, which is located in Shenzhen, Guangdong province, specializing in the research and development, production, marketing, and professional services of LED application products, and providing various indoor & outdoor LED display, rental LED display, LED module, LED panel, intelligent all-in-one LED display, transparent LED display and integrated solutions for control room, commercial advertising, architectural industries, stadiums, churches and many other applications. Our products can meet different point distance, visual distance, brightness and environmental requirements.
• Besides, the products also have passed CCC, FCC, CE, ROHS etc. certificate for global market, and other international standard certification, product and enterprise qualification certification, product test report and patent certificates are complete.
• We stick to the principle of quality and service first, continuously improve and innovate our products to meet the diverse needs of customers and dedicate to creating a more colorful and brighter world.
• If you need a high-quality LED display, please feel free to contact us. You can click on the product to contact us. (https://www.leyardleddisplay.com/contact-us/)
• Exhibition Hall of Made-in-China.com: https://zxbx371.en.made-in-china.com/

FAQs of Indoor LED Display

Q1: What is the lifespan of Indoor LED Display?

A1: The lifespan can vary, but high-quality Indoor LED Display can last over 100,000 hours.

Q2: What is the viewing angle like and is it obstructed?

A2: This display has a large viewing angle, with a horizontal viewing angle of more than 160° and no obstructions.

Q3: Part of the LED screen does not display images how to do?

A3:

1. Check the power supply for the affected area, including input power and switching power supply.
2. Restart the power switch for the relative area with at least a 1-minute interval.
3. Inspect the display unit cascade cable transmission.
4. Replace the control board and set the corresponding address coordinates and brightness color value using software.

Q4: LED whole screen does not display images how to do?

A4:

1. Check if the display power is turned on.
2. Verify HDMI signal input and signal transmission links.
3. Ensure the brightness setting in the display control software is normal.

Q5: How long is the warranty on this display?

A5: Warranty periods vary, but many manufacturers offer warranties ranging from 1 to 5 years.
